Brand: DLAM24
weight: 3200.0 g
Product Code: 9yFU4z3
Product Condition: New

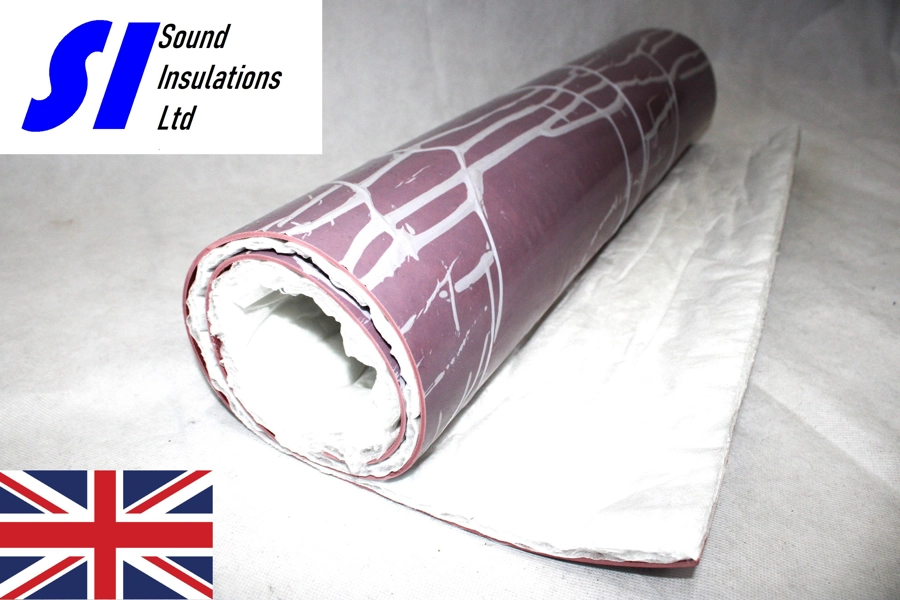

DLAM24 Laminate Acoustic & Thermal Insulation Material 600mm x 1000mm 24mm Thick 5.2Kgm2
Use this high quality laminate acoustic absorption and thermally insulating product for a range of uses including marine engine compartment insulation or machine insulation blankets.
SELF ADHESIVE - BONDS TO MANY SUBSTRATES INCLUDING PLASTERBOARD AND METAL
Tested to:
FMVSS302 and Euroclass B-s2-d0
Sound reduction - Rw (weighted sound reduction index - BS EN ISO 717-1) 27dB
Ideal for sound deadening applications within vehicles, homes and many other applications.
Manufactured in an ISO9001 & ISO14001 accredited facility
DeciLAM™ is a highly flexible self adhesive mass layer which is designed for commercial and industrial applications to reduce sound transmission.
DeciLAM™ is manufactured sustainably in the UK and uses over 50% recycled thermoplastic in the composition of the acoustic barrier layer. It is a low tack PVC chloride free, low odour, low VOC and is 100% recyclable.
It is also free from substances of very high concern (SVHC) like lead, halogens and unrefined aromatic oils.
BENEFITS:
EXCELLENT SOUND REDUCTION AND SOUND DEADENING PROPERTIES FOR THICKNESS OF PRODUCT
GREAT FIRE CLASSIFICATION
LOW SMOKE AND TOXICITY ON BURNING
LOW VOC
LOW ODOUR
100% RECYCLABLE
EASY TO HANDLE AND CUT
APPLICATIONS:
ROOFING SYSTEMS
FLOORING SOUND DEADENING
DUCTING INSULATION
PIPE INSULATION
ACOUSTIC MEMBRANE IN WALLS AND CEILINGS
Shore hardness: 77 Shore A
Static service temperature: -30˚C to 60˚C
&
3m Thinsulate TC1803 Layer
Size: 1m x 0.6m
Thickness: 21mm
Weight: 183g/m2
This is a High Performance Compressible Acoustic Insulation It fits a wide range of applications where varying thickness is highly desired, such as door trim panels and body side trim panels. The products are uniquely high performance and low density making them ideal for mass reduction applications. The web is composed of 50% polyester staple fibres, and 50% polypropylene fibres. The polypropylene fibres are extremely fine, producing the high-energy absorption characteristic with the low weight. The polyester fibres are added to strengthen the web. The scrim attached to both sides is a 100% polypropylene non-woven fabric. It is conformable to accommodate the irregular spaces behind trim panels, headliners and instrument panels. Fills voids to help reduce unwanted noise from travelling throughout the vehicle. It can be processed by conventional techniques such as die-cutting and heat sealing. Attaching to trim panels is easy with this product, using the attached self-adhesive backing. Not recommended for applications where temperatures will be above 120°C
Thickness: 21mm (SAE J1355 @ 0,002 psi, 14 N/m²)
Surface weight: 183 g/m2 (web and scrim)
Density: 7.7 kg/m3
Flammability: 0mm/min as per FMVSS 302 (DIN75200, ISO 3795 (1976))
Temperature stability: 120°C for 2000 Hours .
Use this high quality laminate acoustic absorption and thermally insulating product for a range of uses including marine engine compartment insulation or machine insulation blankets.
SELF ADHESIVE - BONDS TO MANY SUBSTRATES INCLUDING PLASTERBOARD AND METAL
Tested to:
FMVSS302 and Euroclass B-s2-d0
Sound reduction - Rw (weighted sound reduction index - BS EN ISO 717-1) 27dB
Ideal for sound deadening applications within vehicles, homes and many other applications.
Manufactured in an ISO9001 & ISO14001 accredited facility
DeciLAM™ is a highly flexible self adhesive mass layer which is designed for commercial and industrial applications to reduce sound transmission.
DeciLAM™ is manufactured sustainably in the UK and uses over 50% recycled thermoplastic in the composition of the acoustic barrier layer. It is a low tack PVC chloride free, low odour, low VOC and is 100% recyclable.
It is also free from substances of very high concern (SVHC) like lead, halogens and unrefined aromatic oils.
BENEFITS:
EXCELLENT SOUND REDUCTION AND SOUND DEADENING PROPERTIES FOR THICKNESS OF PRODUCT
GREAT FIRE CLASSIFICATION
LOW SMOKE AND TOXICITY ON BURNING
LOW VOC
LOW ODOUR
100% RECYCLABLE
EASY TO HANDLE AND CUT
APPLICATIONS:
ROOFING SYSTEMS
FLOORING SOUND DEADENING
DUCTING INSULATION
PIPE INSULATION
ACOUSTIC MEMBRANE IN WALLS AND CEILINGS
Shore hardness: 77 Shore A
Static service temperature: -30˚C to 60˚C
&
3m Thinsulate TC1803 Layer
Size: 1m x 0.6m
Thickness: 21mm
Weight: 183g/m2
This is a High Performance Compressible Acoustic Insulation It fits a wide range of applications where varying thickness is highly desired, such as door trim panels and body side trim panels. The products are uniquely high performance and low density making them ideal for mass reduction applications. The web is composed of 50% polyester staple fibres, and 50% polypropylene fibres. The polypropylene fibres are extremely fine, producing the high-energy absorption characteristic with the low weight. The polyester fibres are added to strengthen the web. The scrim attached to both sides is a 100% polypropylene non-woven fabric. It is conformable to accommodate the irregular spaces behind trim panels, headliners and instrument panels. Fills voids to help reduce unwanted noise from travelling throughout the vehicle. It can be processed by conventional techniques such as die-cutting and heat sealing. Attaching to trim panels is easy with this product, using the attached self-adhesive backing. Not recommended for applications where temperatures will be above 120°C
Thickness: 21mm (SAE J1355 @ 0,002 psi, 14 N/m²)
Surface weight: 183 g/m2 (web and scrim)
Density: 7.7 kg/m3
Flammability: 0mm/min as per FMVSS 302 (DIN75200, ISO 3795 (1976))
Temperature stability: 120°C for 2000 Hours .
